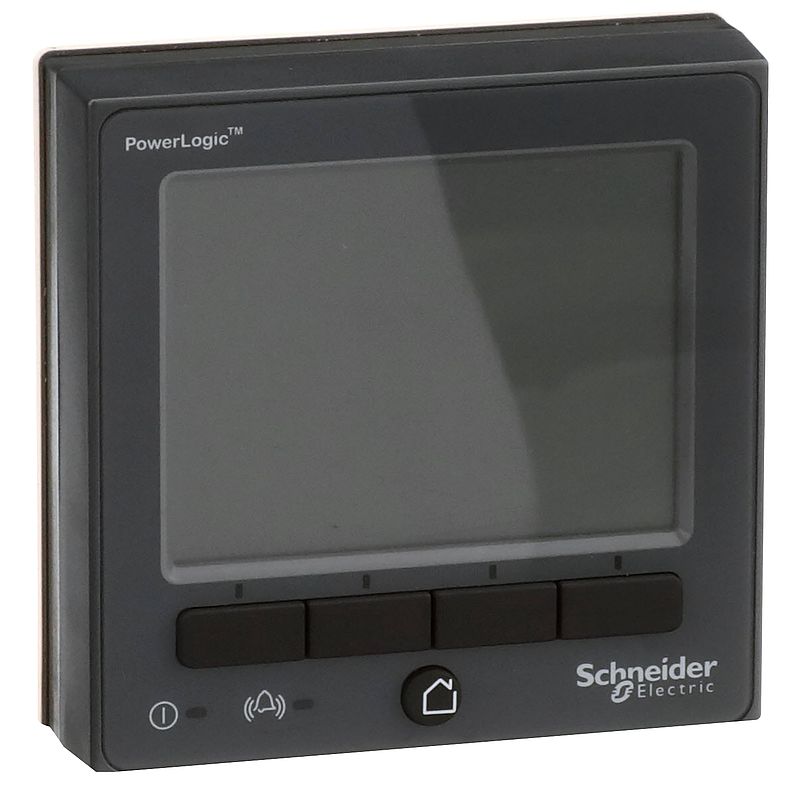

PowerLogic PM89RD96, externes Display 96x96mm, mit 3m Kabel + Montagezubehör für PM8000/ION7400/ION9000
METSEPM89RD96
Materialpreisgruppe
: DR
Hauptdokumente
 Produktdatenblatt |
Download |
|
Declaration of Conformity (Sustainability)
|
Download |
|
Instruction sheet
|
Download |
|
User guide
|
Download |
|
Certificate
|
Download |
|
CAD
|
Download |
|
Circularity Profile
|
Download |
|
Environmental Disclosure
|
Download |
|
Catalog
|
Download |
|
Software - Release
|
Download |
|
Other technical guide
|
Download |
|
Firmware
|
Download |
|
Declaration of conformity
|
Download |
|
Specification sheet
|
Download |
Spezifikationen
| Hauptmerkmale | |
|---|---|
| Baureihe | PowerLogic |
| Produkt- oder Komponententyp | Fernanzeige |
| Geräteanwendung | Mensch-Maschine-Dialoganwendung |
| Kompatible Produktfamilie | PowerLogic PowerLogic PM8000 PowerLogic PowerLogic ION7400 |
| Displaytyp | Integriertes Farb-TFT-LCD Display | Zusatzmerkmale |
| Displayauflösung | 320 x 240 Pixel QVGA |
| Displaygröße | 3,5 Zoll |
| Angezeigte Informationen | Energieverbrauchs Spannung Leistung Oberschwingungsverzerrung Frequenz Strom Systemalarm E/A-Status |
| Anzeigekapazität der Meldungen | Grafische Objekte (Balkendiagramm, Knöpfe, Licht…) |
| Lokale Signalisierung | Status: LED (grün) Alarm: LED (rot) |
| Steuerungstyp | 5 x Drucktaste |
| Anschlusstyp | RJ45 |
| Geliefertes Zubehör | Befestigungsmaterial Kabel (mit 3 m |
| Montagemodus | Flächenbündig |
| Montagehalterung | Rahmenbedingungen Fernanzeige |
| Breite | 96 mm |
| Höhe | 96 mm |
| Projektierungstiefe | 27 mm |
| Produktgewicht | 300 g | Montage |
| Schutzart (IP) | IP54 entspricht IEC 60529 |
| Relative Luftfeuchtigkeit | 5…95 % |
| Betriebshöhe | 0 - 3.000 m |
| Umgebungstemperatur bei Betrieb | -25…60 °C |
| Umgebungstemperatur bei Lagerung | -40…85 °C |
| Produktzertifizierungen | IEC | Verpackungseinheiten |
| VPE 1 Art | PCE |
| Anzahl der Geräte pro Packung | 1 |
| Verpackungsgewicht (Lbs) | 500,000 g |
| VPE 1 Höhe | 12,900 cm |
| VPE 1 Breite | 13,200 cm |
| VPE 1 Länge | 18,000 cm |
| VPE 2 Art | S03 |
| VPE 2 Menge | 8 |
| VPE 2 Höhe | 30,000 cm |
| VPE 2 Breite | 30,000 cm |
| VPE 2 Länge | 40,000 cm |
| VPE 2 Gewicht | 4,560 kg | Vertragliche Gewährleistung |
| Garantie (in Monaten) | 18 |
Nachhaltigkeit
Nachhaltigkeit
Quecksilberfrei
|
Ja |
| Verpackung ohne Kunststoff | Nein |
| Verpackung mit Recycling-Karton | Nein |
| Rücknahme | Ja |
| Sustainable packaging | Nein |
| WEEE-Kennzeichnung | Das Produkt muss entsprechend bestimmter Hinweise auf Märkten der Europäischen Union entsorgt werden und darf nicht in Haushaltsabfälle gelangen. |
| Recyclingfähigkeitspotential in % | 10 |
| Total lifecycle Carbon footprint | 157 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 10.90672472506873 |
| CO₂-Fußabdruck der Herstellungsphase [A1 bis A3] | 11 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.4921037008803015 |
| CO₂-Fußabdruck der Distributionsphase [A4] | 0.5 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.30722461409265117 |
| CO₂-Fußabdruck der Installationsphase [A5] | 0.3 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 144.5951585123966 |
| CO₂-Fußabdruck der Nutzungsphase [B2, B3, B4, B6] | 145 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.713763496081493 |
| CO₂-Fußabdruck der End-of-Life-Phase [C1 bis C4] | 0.7 kg CO2 eq. |
| CO2-Bilanz (kg CO2 eq.) | 157 |
| EU-RoHS-Richtlinie | https://download.schneider-electric.com/files?p_Doc_Ref=METSEPM89RD96_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
| REACh-Verordnung | https://download.schneider-electric.com/files?p_Doc_Ref=METSEPM89RD96_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+%28Sustainability%29 |
